Split-Horizon DNS Architecture: Implementing Dual-View Resolution with BIND 9 on Linux

1. Introduction: Solving the Internal/External DNS Dichotomy

Modern enterprise infrastructures, web applications, and databases exist in hybrid environments spanning public cloud interfaces and isolated Virtual Private Clouds (VPCs). When it comes to routing internal service traffic, an effective Split-Horizon DNS Architecture solves a crucial challenge. Without it, you are forced to choose between unnecessary external routing or managing disparate hostnames.

The Split-Horizon DNS Architecture Advantage

Consider an API service hosted at api.enterprise.com. Without Split-Horizon DNS (also known as Split-Brain DNS), administrators must either point the A record to a public IP—causing “hairpin NAT” latency penalties—or create separate internal domains like api-internal.corp.lan. This fractures configuration logic and complicates SSL/TLS validation.

By implementing a Split-Horizon DNS architecture, you maintain a single unified domain namespace. The DNS server dynamically segments resolution based on the client IP address. Public internet visitors resolve endpoints to external firewalls, while internal worker nodes resolve the identical hostname directly to private 10.x.x.x LAN interfaces.

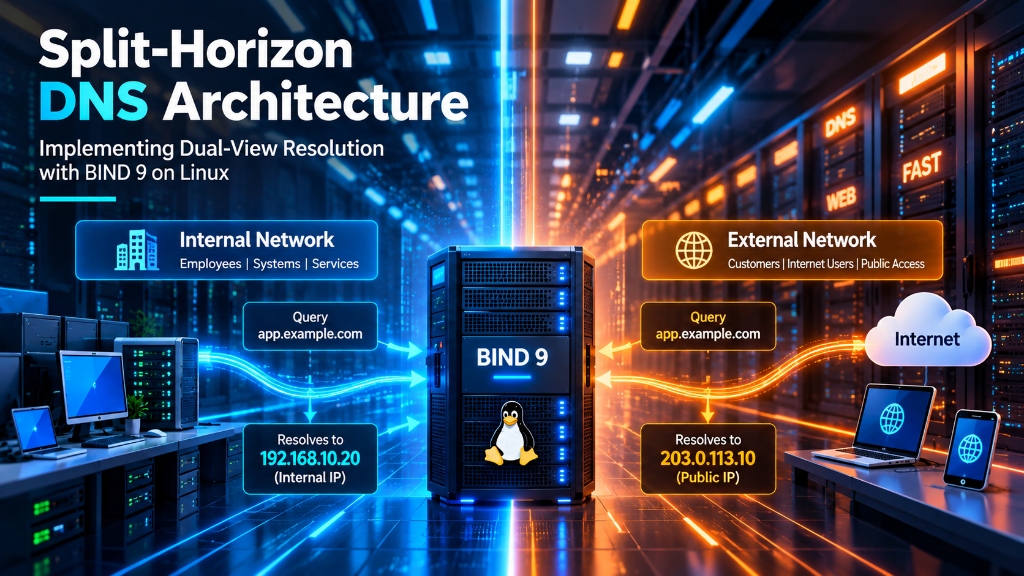

2. Architecture Topology: Public Edge vs Private VPC Networks

In a standard split-horizon setup, the DNS server evaluates incoming queries against configured Access Control Lists (ACLs) before serving the answer.

External Client (203.0.113.50)  --> Query: api.enterprise.com --> Response: 198.51.100.25 (Public WAF)
Internal Node   (10.50.10.15)    --> Query: api.enterprise.com --> Response: 10.50.10.100 (Private LAN)

Deploying this dual-view topology on robust hardware, such as a managed dedicated server, allows you to establish secure internal communication channels with minimal latency.

3. BIND 9 View-Based Configuration: ACLs and Zone Separation

BIND 9 (Berkeley Internet Name Domain) provides native support for Split-Horizon DNS architecture via the view statement. The configuration involves setting up distinct ACLs for internal trusted networks.

Configure /etc/bind/named.conf.local on your authoritative nameserver:

# 1. Define ACLs for Trusted Networks
acl "internal-networks" {
    127.0.0.1;
    10.50.0.0/16;
    192.168.10.0/24;
    !any;
};

# 2. Internal View (Served to internal nodes)
view "internal-view" {
    match-clients { "internal-networks"; };
    recursion yes;
    zone "enterprise.com" {
        type master;
        file "/etc/bind/zones/db.enterprise.internal";
    };
};

# 3. External View (Served to the public)
view "external-view" {
    match-clients { any; };
    recursion no;
    zone "enterprise.com" {
        type master;
        file "/etc/bind/zones/db.enterprise.external";
    };
};

4. Internal vs External Zone File Definitions

Inside the internal zone file, service endpoints resolve to private RFC 1918 addresses.

$TTL 300
@       IN  SOA ns1.enterprise.com. admin.enterprise.com. ( 2026100601 3600 1800 604800 300 )
@       IN  NS  ns1.enterprise.com.
api     IN  A   10.50.10.100
db      IN  A   10.50.10.200
staging IN  A   10.50.20.15

Conversely, in the external zone file, sensitive internal endpoints like db and staging are completely omitted. Only public-facing edge services are exposed, securing your network against public DNS enumeration.

5. Unbound as a Caching Resolver for Split-Horizon DNS

While BIND 9 serves as the authoritative source, deploying Unbound as a caching resolver on worker nodes accelerates lookup times. Unbound caches responses in RAM, allowing microservices to perform lookups in under 0.2 milliseconds.

server:
    access-control: 10.50.0.0/16 allow
    local-data: "api.enterprise.com. A 10.50.10.100"
    local-data: "db.enterprise.com. A 10.50.10.200"

    forward-zone:
        name: "."
        forward-addr: 1.1.1.1

By leveraging secure domain registration and DNS routing, your caching setup ensures highly available and rapid internal communications.

6. Security Implications: Preventing DNS Data Leaks

A proper Split-Horizon DNS architecture necessitates strict defensive measures:

7. Conclusion & FAQ

Implementing a Split-Horizon DNS architecture with BIND 9 allows organizations to maintain high-performance internal routing while securing sensitive infrastructure from the public internet. This configuration ensures faster database connections, lowers external bandwidth usage, and provides a centralized naming schema.

Frequently Asked Questions
